Key Features
● Simplified Deployment tower-mount and rack-mount installation,easily adapting to diversified scenarios
● Energy-efficien Up to 85%system,efficiency,High power grid adaptability,ensuring power supply reliability
● Intelligent All-link remote Monitoring,Maintenance easy
Application Scenarios
● New-built wireless site
● Networks,communications systems,automatic control systems
● Power supply for macro station and outdoor cabinet

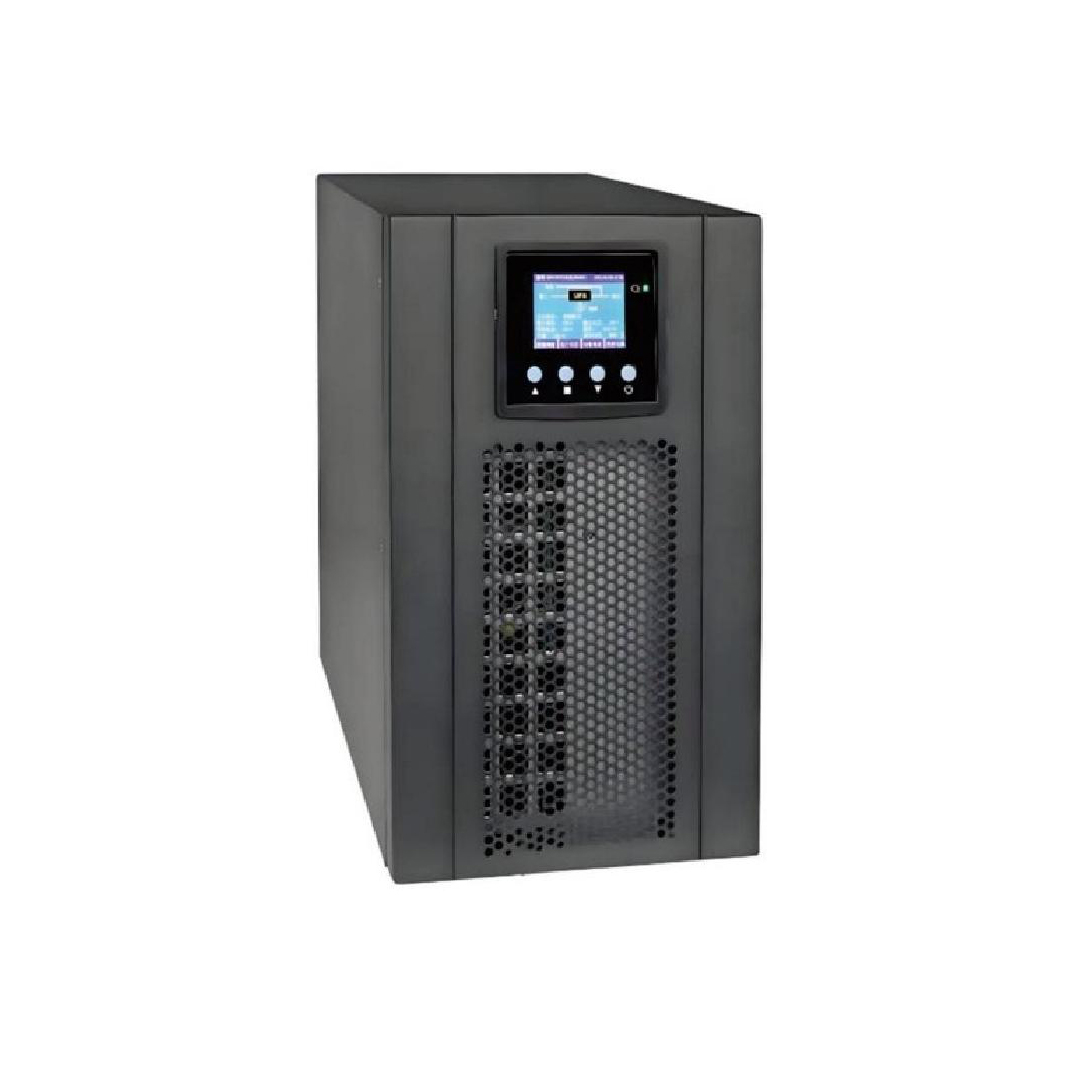

Specification
Rated power | 6KVA |
Model | UPS48120L |
DC Input voltage range | 48VDC(12-220VDC) |
AC Input voltage range | 220VAC±20% |
Frequency range | 45Hz~65Hz |
Efficiency | ≥85% |
Output voltage | 220VAC±2%(110VAC) |
Output current | 19.1A@default voltage |
Overload Capacity | ≥100%～125%10mins,125%~ 150%,10secs;150%,off |
THD | Linear Load<3%;Non-linear Load<5% |
Battery | 48V Lithium battery,Charging current ≤5A |
Protection | Short Circuit;High Temperature;Over Voltage |
Bypass switching time | ≤8ms |
Operating temperature | -10℃~+45℃ |
Communication interface | LCD/Modbus-RTU/Dry contact |
Dimension(HxW×D) | 335mmx190mm×360mm |
Weight | ≤12kg |
IP rating | IP20 |
Cooling method | FAN |
Installation | tower-mount |
